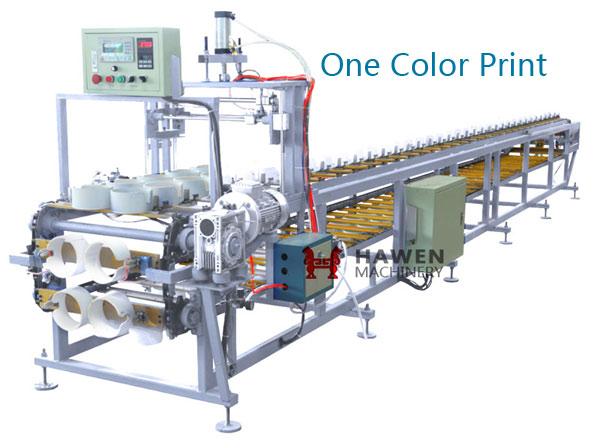

1 color 1 side Balloon printing machine

Hawen Balloon printing machine (one side one color) technology data:

1. Machine size: 8 meter length, 1.8 meter height, 1.2 meter width

2. Motor power: 2.2 kw sevor motor

3. Production capacity: 2500-3000 pcs per hour.

4. Air compressor: 7.5 KW, 0.8 MPA, 0.9 m3/min (customer prepare)

5. Silk screen quantity: 1 pcs

6. Voltage:  220V, 60 HZ, 3 Phase or 380V, 50HZ, 3 Phase

7. Suitable Balloon size：From 5' to 10', Above 12' can design new machine to customer.

Main advantages:

1. Move faster, easy operation, good printing quality.

2. Balloon printing machine with air filled, printing logo clear, mistake less than 0.1mm

3. Machine length can adjusted according to customer local weather.

4. With big and strong chain, use more than 10 years, single chain length 16 meters, total 32 meters.

5. 126 working position and balloon holders.

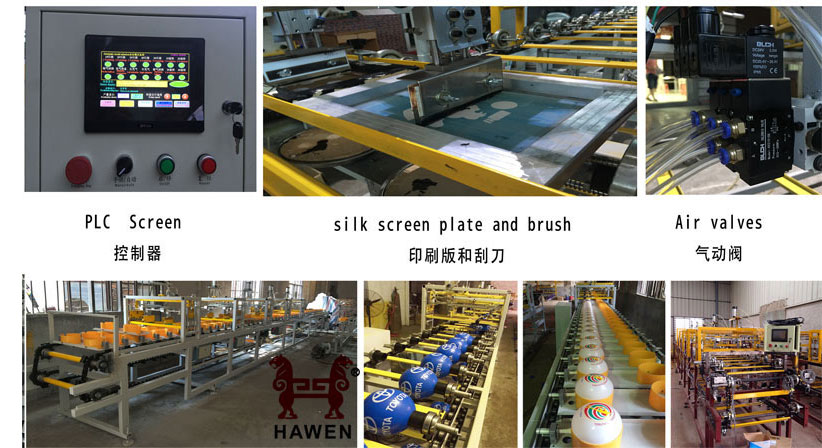

6. Automatic control by PLC, english and chinese languages.

7. Every mistake can be shown on the screen.

8. Simple design, multi function.

9. Silk screen prining ink and screen easy to have around the world.
