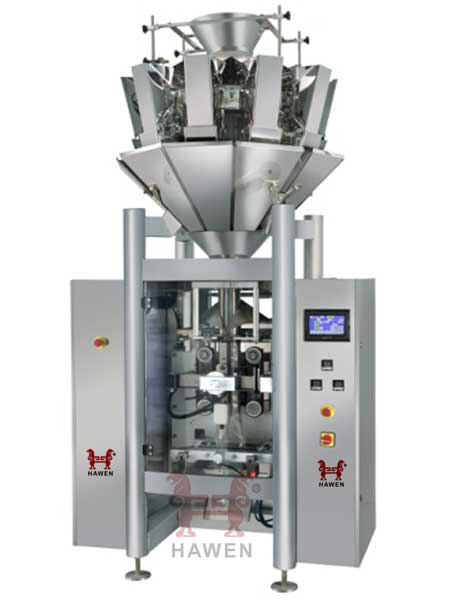

Balloons packing machine
Balloons packing machine technical specification
Item | Content |
Speed | 45-50 bags/min |
Bag size | (L)50-300mm (W)50-220mm |
Bag type | Pillow bag, (option:gusseted bag, punching bag) |
Film width | 460mm |
Film thickness | 0.04-0.9mm |
Air consumption | 0.5cmb/min 0.8MPa |
Power | 2.2KW/220V 50Hz |
Dimension | L1830*W1369*H2671.5mm |
Weight | 877kg |
Main features of Compack machine M46
* Balloons packing machine have low input high gain, high speed and efficiency.
* International brand PLC control system, large touch screen, convenient to operate.
* Film drawing down system with servo motor and horizontal sealing controlled by cylinder, Minimize the loss with complete automatic warm protection function.
* High automatic, it can complete feeding ,measuring, filling, sealing, date printing ,filling nitrogen, counting, transporting the finished products.
*Bag type: Pillow bag and gusseted bag
